600PS Audi TT concept gives a taste of future turbo power
The atmosphere will be especially highly charged at this year’s Wörthersee Tour festival because it will play host to an Audi TT clubsport turbo concept delivering a colossal 600PS and 650Nm with the help of an innovative electrically driven biturbo compressor that is close to being production ready. With its stripped-out interior, wider stance and distinctive rear wing the most extreme TT to date is intentionally reminiscent of the thoroughbred Audi 90 IMSA GTO race car of the late 1980s, so it is guaranteed to make an impact at Austria’s annual meeting for Volkswagen Group enthusiasts.
“The electric biturbo signifies a new dimension in driving enjoyment; it boosts sprinting ability and torque and enables high peak power,” explains Prof. Dr. Ulrich Hackenberg, Audi Board Member for Technical Development. “In our TDI engines, we are close to production readiness with this technology. We are now presenting it in a TFSI – here too, we are the first automaker in the world to do this. For our fans at Wörthersee, we have packaged the electric biturbo in a very sporty show car.”
The Audi TT clubsport turbo has a power-boosted 2.5 TFSI engine with very impressive performance data. From 2,480 cc of displacement, the five-cylinder engine produces 600PS of power and 650Nm (479.4 lb-ft) of torque, the latter from 3,000 to 7,000 rpm. This means that it produces 240PS and 260Nm (191.8 lb-ft) per litre of displacement. Power is transferred via a manual six-speed transmission.
Thanks to systematic lightweight design, the TT clubsport turbo show car has an unladen weight of just 1,396 kg. The car completes the standard sprint from 0 to 62 mph in 3.6 seconds, with a top speed of 192 mph. The TT clubsport turbo plays out its big advantage over the first few metres of a sprint. Its electrically driven compressor lets it cover up to 16 metres within the first 2.5 seconds – which is six metres further than a comparable car without this innovation. That is a difference of around one and one-half car lengths.
Electric thrust: Additional compressor fills turbo hole
An electrically powered compressor offers significant advantages: It revs up to maximum rpm rapidly and without any perceptible delay, and it continues to boost charge pressure when too little drive energy is left in the exhaust gas for the conventional turbocharger. This operating principle makes it possible to design the conventional turbocharger more specifically for high charge pressures and consequently for high engine power – the e-turbo assures spontaneous response and powerful sprints from low engine speeds at all times.
The effect is impressive. The 2.5 TFSI engine builds up its tremendous power without any perceptible delay. This power is available in any situation – whenever the accelerator pedal is pressed. In an acceleration duel, the TT clubsport turbo effortlessly pulls away from a counterpart with an identically powered engine but no electric biturbo.
However, it is not just the power of the five-cylinder engine that is fascinating – so is its unmistakable throaty sound. The exhaust system is designed for minimal back-pressure; a side pipe to the ambient air is located immediately after the racing-type muffler. The 2.5 TFSI engine is cooled by a racing-type radiator. In the lower engine speed range, the electrically driven compressor boosts torque by up to 200Nm (147.5 lb-ft).
Energy storage: the 48-volt electrical system
A dedicated 48-volt electrical sub-system – another key future technology from Audi – supplies electrical energy to the turbocharger. A compact lithium-ion battery in the luggage compartment stores the energy that is generated by recuperation when coasting. A DC/DC converter provides the connection to the 12-volt electrical system.
The power of the Audi TT clubsport turbo reaches the road impressively via a quattro permanent all-wheel drive system whose multi-plate clutch is mounted on the rear axle for better weight distribution. A coilover suspension system enables highly precise adjustment of the body’s ride height and the compression and rebound of the shock absorbers. An electric lifting function protects the equipment from damage by street kerbs. Electronic stabilisation control (ESC) and torque vectoring round out the dynamic qualities of the suspension ideally.
The show car’s wheels are size 9.5 J x 20. Their six twin-spoke design is finished in a bi-colour look – both gloss turn finished and matt black – and the tyres are size 275/30. Carbon-fibre ceramic brake discs are mounted behind all four wheels; they are very lightweight and wear-resistant. The front brake discs measure 370 mm in diameter.
Widened by 14 cm: spectacular add-on parts

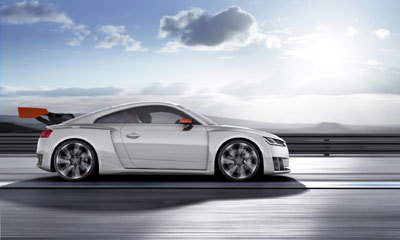

The compact sports car takes a full stance on the road with track widths of 1,736 mm in front and 1,729 mm at the rear. The car is 4.33 metres long and 1.97 metres wide, including the side mirrors – 14 cm wider than the technical platform upon which it was based. Its angular wings contribute a separate additive shape to the car body. They take the characteristic design motif of the Audi TT to an extreme and emphasise the quattro drive.

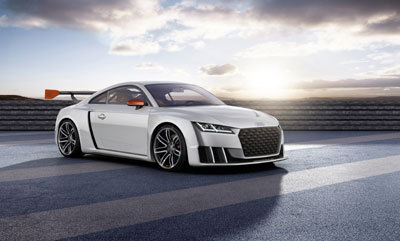

The wings of the show car – painted in the exterior colour Ferro Titanium – are open at the front and rear. Air from the car’s slipstream flows through them to cool the brakes. The Singleframe grille and large air inlets – whose vertical fins form a continuation to the light signature of the Matrix LED headlights – are also optimised for maximum air throughput.

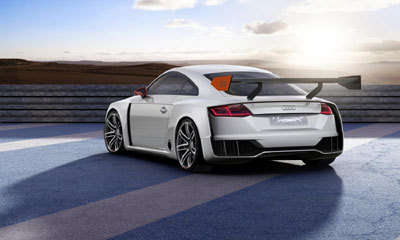

The manually adjustable rear wing is an advanced development of the Audi Sport TT Cup with which the brand very recently launched a dedicated race series. It is now 20 cm wider, and the side flaps, which feature the four rings, were given a new geometry. The wing consists of carbon-fibre reinforced polymer (CFRP) as do all other add-on parts: the air inlets and the large splitter at the front, the side panels and side sill trims as well as the voluminous diffuser at the rear whose lateral segments reference the motif of the air inlets.
The interior: fully focused on the driver

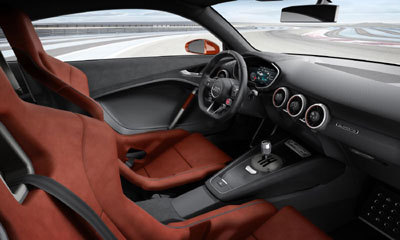

A protective “cage” of ultra-high-strength titanium tubes makes the rear zone of the interior even more rigid and safe. In front, there are lightweight race car bucket seats with four-point harnesses. The display and operating concept with the digital Audi virtual cockpit focuses on the driver, who can control all key driving parameters via four satellite buttons on the multifunction steering wheel.
CFRP and black Alcantara define the interior of the Audi TT clubsport turbo. The race seats are upholstered in coral orange Alcantara and feature contrasting stitching and piping. In the doors and on the centre console, CFRP parts with their large surfaces create sporty accents, and the doors are closed by pulling on a tube-shaped grip with an Alcantara inlay. The air vents and gear shifter also have coral orange accents – the aluminium gear shift lever travels in an open shift gate.
